ELK+Redis+Logback实时收集微服务日志

一、安装elasticsearch

sysctl -w vm.max_map_count=262144
mkdir -p /opt/elk/elastic

docker run --name=elasticsearch \
        --env=TZ=Asia/Shanghai \
        --env='ES_JAVA_OPTS=-Xms1024m -Xmx1024m' \
        --volume=/opt/elk/elastic/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml \
        --volume=/opt/elk/elastic/plugins:/usr/share/elasticsearch/plugins \
        --volume=/opt/elk/elastic/data:/usr/share/elasticsearch/data \
        --volume=/opt/elk/elastic/logs:/usr/share/elasticsearch/logs \
        --privileged \
        --workdir=/usr/share/elasticsearch \
        -p 9200:9200 \
        -p 9300:9300 \
        --restart=always \
        --runtime=runc \
        --detach=true \
        -t \
        elasticsearch:7.17.17 \
        eswrapper

elasticsearch.yml内容：

cluster.name: "docker-cluster"
network.host: 0.0.0.0
# 访问ID限定，0.0.0.0为不限制，生产环境请设置为固定IP
transport.host: 0.0.0.0
# elasticsearch节点名称
node.name: node-1
# elasticsearch节点信息
cluster.initial_master_nodes: ["node-1"]
# 下面的配置是关闭跨域验证
http.cors.enabled: true
http.cors.allow-origin: "*"

二、安装kibana

mkdir -p /opt/elk/kibana
docker run --name=kibana \
        --user=kibana \
        --volume=/opt/elk/kibana/kibana.yml:/usr/share/kibana/config/kibana.yml \
        --workdir=/usr/share/kibana \
        -p 5601:5601 \
        --restart=no \
        --runtime=runc \
        --detach=true \
        -t \
        kibana:7.17.17 \
        /usr/local/bin/kibana-docker

kibana.yml内容：

server.port: 5601
server.host: "0.0.0.0"
elasticsearch.hosts: ["http://192.168.3.9:9200"]
# 操作界面语言设置
i18n.locale: "zh-CN"

三、安装redis

mkdir -p /opt/elk/redis
docker run --name=redis \
        --volume=/opt/elk/redis/redis.conf:/etc/redis/redis.conf:rw \
        --volume=/etc/localtime:/etc/localtime:ro \
        --volume=/opt/elk/redis/data:/data:rw \
        --workdir=/data \
        -p 6379:6379 \
        --restart=unless-stopped \
        --runtime=runc \
        --detach=true \
        -t \
        redis:7.2.4 \
        redis-server /etc/redis/redis.conf

redis.conf内容：

port 6379
requirepass Ptl3BKCbMZ

四、安装logstatsh

mkdir -p /opt/elk/logstash/{logs,pathdata1,pathdata2}

下载logstash，版本：7.17.17

wget https://artifacts.elastic.co/downloads/logstash/logstash-7.17.17-linux-x86_64.tar.gz

解压后放在/opt/elk/logstash下，设置环境变量：

PATH=/opt/elk/logstash/logstash-7.17.7/bin:$PATH
export PATH

设置to-redis.conf (logstash收集日志并把日志转储到redis)

input {
    tcp {
        port => 9092
        type => "log-ruoyi-gateway"
    }
    tcp {
        port => 9093
        type => "log-ruoyi-auth"
    }
    tcp {
        port => 9094
        type => "log-ruoyi-system"
    }
    tcp {
        port => 9095
        type => "log-ruoyi-file"
    }
    tcp {
        port => 9096
        type => "log-ruoyi-job"
    }
    tcp {
        port => 9097
        type => "log-ruoyi-gen"
    }
    tcp {
        port => 9098
        type => "log-ruoyi-business"
    }
}




filter {
    json {
        source => "message"
    }
}
output {
    if [type] == "log-ruoyi-gateway" {
        redis {
            host => "192.168.3.9"
            port => "6379"
            key => "log-ruoyi-gateway"
            data_type => "list"
            codec => "json"
            password => "Ptl3BKCbMZ"
            db => "0"
         }
     }
    if [type] == "log-ruoyi-auth" {
        redis {
            host => "192.168.3.9"
            port => "6379"
            key => "log-ruoyi-auth"
            data_type => "list"
            codec => "json"
            password => "Ptl3BKCbMZ"
            db => "0"
         }
     }
    if [type] == "log-ruoyi-system" {
        redis {
            host => "192.168.3.9"
            port => "6379"
            key => "log-ruoyi-system"
            data_type => "list"
            codec => "json"
            password => "Ptl3BKCbMZ"
            db => "0"
         }
     }
    if [type] == "log-ruoyi-file" {
        redis {
            host => "192.168.3.9"
            port => "6379"
            key => "log-ruoyi-file"
            data_type => "list"
            codec => "json"
            password => "Ptl3BKCbMZ"
            db => "0"
         }
     }
    if [type] == "log-ruoyi-job" {
        redis {
            host => "192.168.3.9"
            port => "6379"
            key => "log-ruoyi-job"
            data_type => "list"
            codec => "json"
            password => "Ptl3BKCbMZ"
            db => "0"
         }
     }
    if [type] == "log-ruoyi-gen" {
        redis {
            host => "192.168.3.9"
            port => "6379"
            key => "log-ruoyi-gen"
            data_type => "list"
            codec => "json"
            password => "Ptl3BKCbMZ"
            db => "0"
         }
     }
    if [type] == "log-ruoyi-business" {
        redis {
            host => "192.168.3.9"
            port => "6379"
            key => "log-ruoyi-business"
            data_type => "list"
            codec => "json"
            password => "Ptl3BKCbMZ"
            db => "0"
         }
     }
}

设置redis-to.conf (logstash读取redis里的日志，并将日志插入到elasticsearch中，redis起了MQ消息队列的作用，消息被取走后，自动清除消息；有了redis做MQ，防止es挂了丢失消息，并且可以减缓es收到的压力)

input{
        redis{
                data_type=>"list"
                host=>"192.168.3.9"
                port=>"6379"
                db=>"0"
                key=>"log-ruoyi-gateway"
                codec=>"json"
                password=>"Ptl3BKCbMZ"
                type=>"log-ruoyi-gateway"




        }
        redis{
                data_type=>"list"
                host=>"192.168.3.9"
                port=>"6379"
                db=>"0"
                key=>"log-ruoyi-auth"
                codec=>"json"
                password=>"Ptl3BKCbMZ"
                type=>"log-ruoyi-auth"




        }
        redis{
                data_type=>"list"
                host=>"192.168.3.9"
                port=>"6379"
                db=>"0"
                key=>"log-ruoyi-system"
                codec=>"json"
                password=>"Ptl3BKCbMZ"
                type=>"log-ruoyi-system"




        }
        redis{
                data_type=>"list"
                host=>"192.168.3.9"
                port=>"6379"
                db=>"0"
                key=>"log-ruoyi-file"
                codec=>"json"
                password=>"Ptl3BKCbMZ"
                type=>"log-ruoyi-file"




        }
        redis{
                data_type=>"list"
                host=>"192.168.3.9"
                port=>"6379"
                db=>"0"
                key=>"log-ruoyi-job"
                codec=>"json"
                password=>"Ptl3BKCbMZ"
                type=>"log-ruoyi-job"




        }
        redis{
                data_type=>"list"
                host=>"192.168.3.9"
                port=>"6379"
                db=>"0"
                key=>"log-ruoyi-gen"
                codec=>"json"
                password=>"Ptl3BKCbMZ"
                type=>"log-ruoyi-gen"




        }
        redis{
                data_type=>"list"
                host=>"192.168.3.9"
                port=>"6379"
                db=>"0"
                key=>"log-ruoyi-business"
                codec=>"json"
                password=>"Ptl3BKCbMZ"
                type=>"log-ruoyi-business"




        }
}
output{
        if [type] == "log-ruoyi-gateway" {
            elasticsearch{
                hosts=>["192.168.3.9:9200"]
                index=>"nk-gateway-%{+YYYY.MM.dd}"
            }
        }




        if [type] == "log-ruoyi-auth" {
            elasticsearch{
                hosts=>["192.168.3.9:9200"]
                index=>"nk-auth-%{+YYYY.MM.dd}"
            }
        }




        if [type] == "log-ruoyi-system" {
            elasticsearch{
                hosts=>["192.168.3.9:9200"]
                index=>"nk-system-%{+YYYY.MM.dd}"
            }
        }




        if [type] == "log-ruoyi-file" {
            elasticsearch{
                hosts=>["192.168.3.9:9200"]
                index=>"nk-file-%{+YYYY.MM.dd}"
            }
        }




        if [type] == "log-ruoyi-job" {
            elasticsearch{
                hosts=>["192.168.3.9:9200"]
                index=>"nk-job-%{+YYYY.MM.dd}"
            }
        }




        if [type] == "log-ruoyi-gen" {
            elasticsearch{
                hosts=>["192.168.3.9:9200"]
                index=>"nk-gen-%{+YYYY.MM.dd}"
            }
        }




        if [type] == "log-ruoyi-business" {
            elasticsearch{
                hosts=>["192.168.3.9:9200"]
                index=>"nk-business-%{+YYYY.MM.dd}"
            }
        }




}

检测logstatsh配置文件的语法：

logstash -f ./to-redis.conf -t
logstash -f ./redis-to.conf -t

启动logstatsh：

nohup logstash -f /opt/elk/logstash/to-redis.conf --path.data=/opt/elk/logstash/pathdata1 &>/opt/elk/logstash/logs/to_redis.log &
nohup logstash -f /opt/elk/logstash/redis-to.conf --path.data=/opt/elk/logstash/pathdata2 &>/opt/elk/logstash/logs/redis-to.log &

配置logback

引起依赖

springboot已经默认集成了logback框架，所以无需在引入logback了，以下依赖是logback和logstash通讯所需的依赖

<dependency>
            <groupId>net.logstash.logback</groupId>
            <artifactId>logstash-logback-encoder</artifactId>
            <version>6.3</version>
  </dependency>

配置文件

yml配置文件中加上

logging:
  config: classpath:log/logback-spring.xml

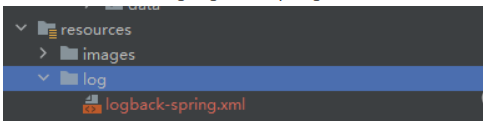

在resource中加上log/logback-spring.xml配置文件

<?xml version="1.0" encoding="UTF-8"?>
<!-- 日志级别从低到高分为TRACE < DEBUG < INFO < WARN < ERROR < FATAL，如果设置为WARN，则低于WARN的信息都不会输出 -->
<!-- scan:当此属性设置为true时，配置文件如果发生改变，将会被重新加载，默认值为true -->
<!-- scanPeriod:设置监测配置文件是否有修改的时间间隔，如果没有给出时间单位，默认单位是毫秒。当scan为true时，此属性生效。默认的时间间隔为1分钟。 -->
<!-- debug:当此属性设置为true时，将打印出logback内部日志信息，实时查看logback运行状态。默认值为false。 -->
<configuration scan="true" scanPeriod="10 seconds">
    <!--<include resource="org/springframework/boot/logging/logback/base.xml"
        /> -->
    <contextName>Logback For Boss</contextName>
    <!-- name的值是变量的名称，value的值时变量定义的值。通过定义的值会被插入到logger上下文中。定义变量后，可以使“${}”来使用变量。 -->
    <property name="log.path" value="./logs/hlwserver/path" />
    <!-- 定义日志文件 输入位置 -->
    <property name="logDir" value="./logs/hlwserver/" />
    <!-- 日志最大的历史 30天 -->
    <property name="maxHistory" value="30" />




    <!-- logstash远程日志配置-->
    <appender name="logstash" class="net.logstash.logback.appender.LogstashTcpSocketAppender">
        <destination>192.168.5.188:9092</destination>
        <encoder charset="UTF-8" class="net.logstash.logback.encoder.LogstashEncoder"/>
    </appender>




    <!-- 控制台输出日志 -->
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>%cyan(%d{yyyy-MM-dd HH:mm:ss.SSS}) [%thread] %highlight(%-5level) %logger{36} - %msg%n</pattern>
            <charset class="java.nio.charset.Charset">UTF-8</charset>
        </encoder>
    </appender>




    <!-- ERROR级别单独输出的日志 -->
    <appender name="ERROR"
              class="ch.qos.logback.core.rolling.RollingFileAppender">
        <filter class="ch.qos.logback.classic.filter.LevelFilter">
            <level>ERROR</level>
            <onMatch>ACCEPT</onMatch>
            <onMismatch>DENY</onMismatch>
        </filter>
        <rollingPolicy
                class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${logDir}\%d{yyyyMMdd}\error.log</fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger -
                %msg%n</pattern>
            <charset class="java.nio.charset.Charset">UTF-8</charset>
        </encoder>
        <append>true</append>
        <prudent>false</prudent>
    </appender>




    <!-- 所有级别日志的文件输出 -->
    <appender name="ALL_LOGS"
              class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy
                class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <fileNamePattern>${logDir}\%d{yyyyMMdd}\info.log</fileNamePattern>
            <maxHistory>${maxHistory}</maxHistory>
        </rollingPolicy>
        <encoder>
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger -
                %msg%n</pattern>
            <charset class="java.nio.charset.Charset">UTF-8</charset>
        </encoder>
        <append>false</append>
        <prudent>false</prudent>
    </appender>




    <!--文件日志， 按照每天生成日志文件 -->
    <appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--日志文件输出的文件名-->
            <FileNamePattern>${logDir}/%d{yyyyMMdd}/boss.%d{yyyy-MM-dd}.log</FileNamePattern>
            <!--日志文件保留天数-->
            <MaxHistory>30</MaxHistory>
        </rollingPolicy>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度%msg：日志消息，%n是换行符-->
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%n</pattern>
        </encoder>
        <!--日志文件最大的大小-->
        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <MaxFileSize>10MB</MaxFileSize>
        </triggeringPolicy>
    </appender>




    <!-- 异步输出 -->
    <appender name="dayLogAsyncAppender" class="ch.qos.logback.classic.AsyncAppender">
        <includeCallerData>true</includeCallerData>
        <!-- 不丢失日志.默认的,如果队列的80%已满,则会丢弃TRACT、DEBUG、INFO级别的日志 -->
        <discardingThreshold>0</discardingThreshold>
        <!-- 更改默认的队列的深度,该值会影响性能.默认值为256 -->
        <queueSize>512</queueSize>
        <appender-ref ref="FILE"/>
    </appender>




    <!--专为 spring 定制
     -->
    <logger name="org.springframework" level="info"/>
    <!-- show parameters for hibernate sql 专为 Hibernate 定制 -->
    <logger name="org.hibernate.type.descriptor.sql.BasicBinder" level="TRACE" />
    <logger name="org.hibernate.type.descriptor.sql.BasicExtractor" level="DEBUG" />
    <logger name="org.hibernate.SQL" level="DEBUG" />
    <logger name="org.hibernate.engine.QueryParameters" level="DEBUG" />
    <logger name="org.hibernate.engine.query.HQLQueryPlan" level="DEBUG" />




    <!-- root级别 DEBUG -->
    <root level="INFO">
        <!-- 控制台输出 -->
        <appender-ref ref="STDOUT" />
        <!-- 文件输出 -->
        <appender-ref ref="ERROR" />
        <appender-ref ref="ALL_LOGS" />
        <appender-ref ref="logstash" />
    </root>
</configuration>

主要配置

启动程序就会有日志，然后去kibana中查看是否有生成的索引
